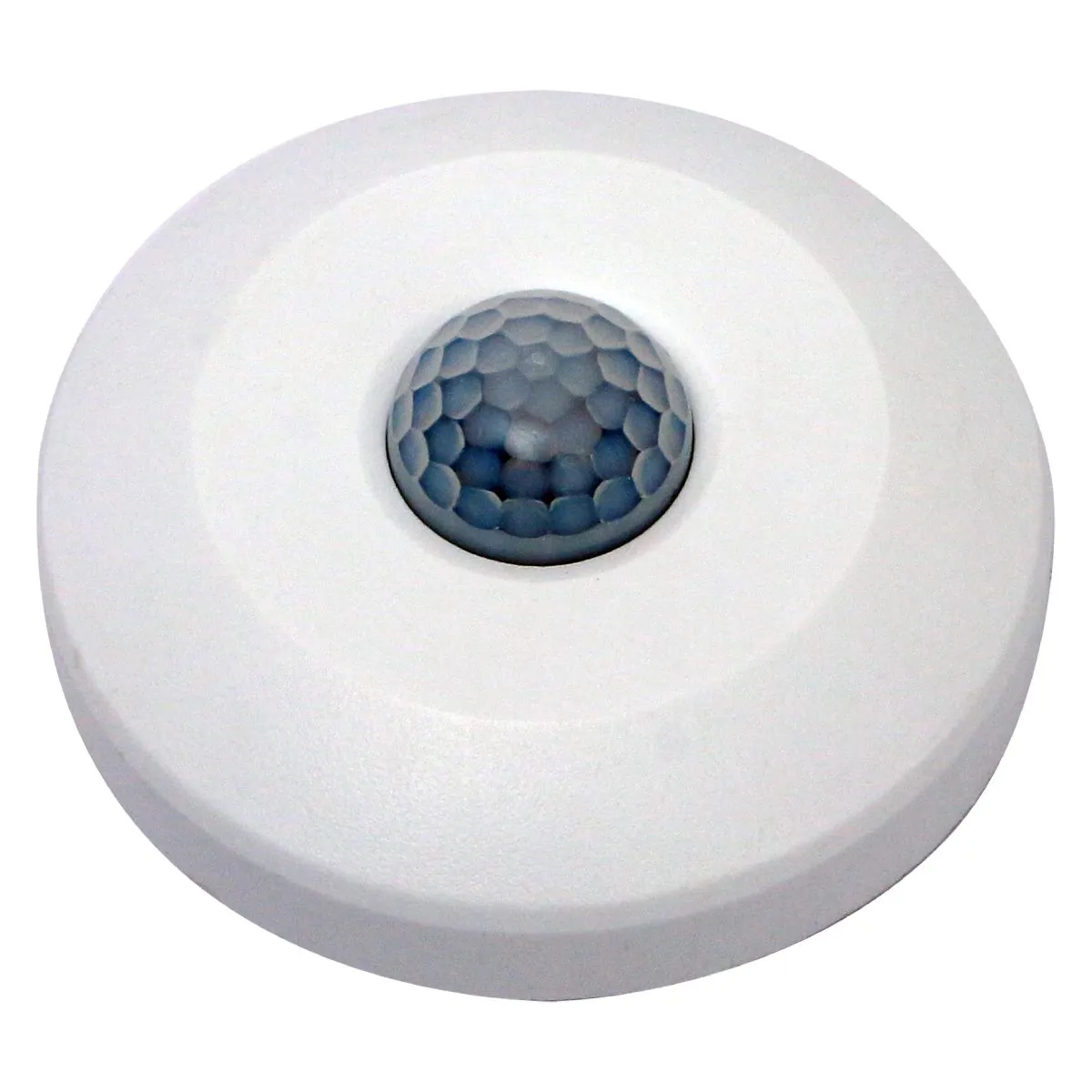

Mini Surface PIR (Passive Infrared) Sensor

Key Features

• Power Frequency : 50 Hz – 60 Hz
• Working Temperature : -20 °C to +40 °C
• Ambient Light : <10 lx – 2000 lx (Adjustable)
• Working Humidity : 93 % RH
• Time Delay : min 10 sec +/- 3 sec | Max 7 min +/- 2 min
• Installing Height : 2.2 m – 4 m
• Detection Motion Speed : 0.6 m/s – 1.5 m/s
• Rated Load : 100 W (incandescent lamp) | 100 W (energy saving lamp and LED)
• Detection Distance : max 6 m (<24 °C)
• Disclaimer: Product Images are for illustrative purpose only and may be differ from the actual product.
