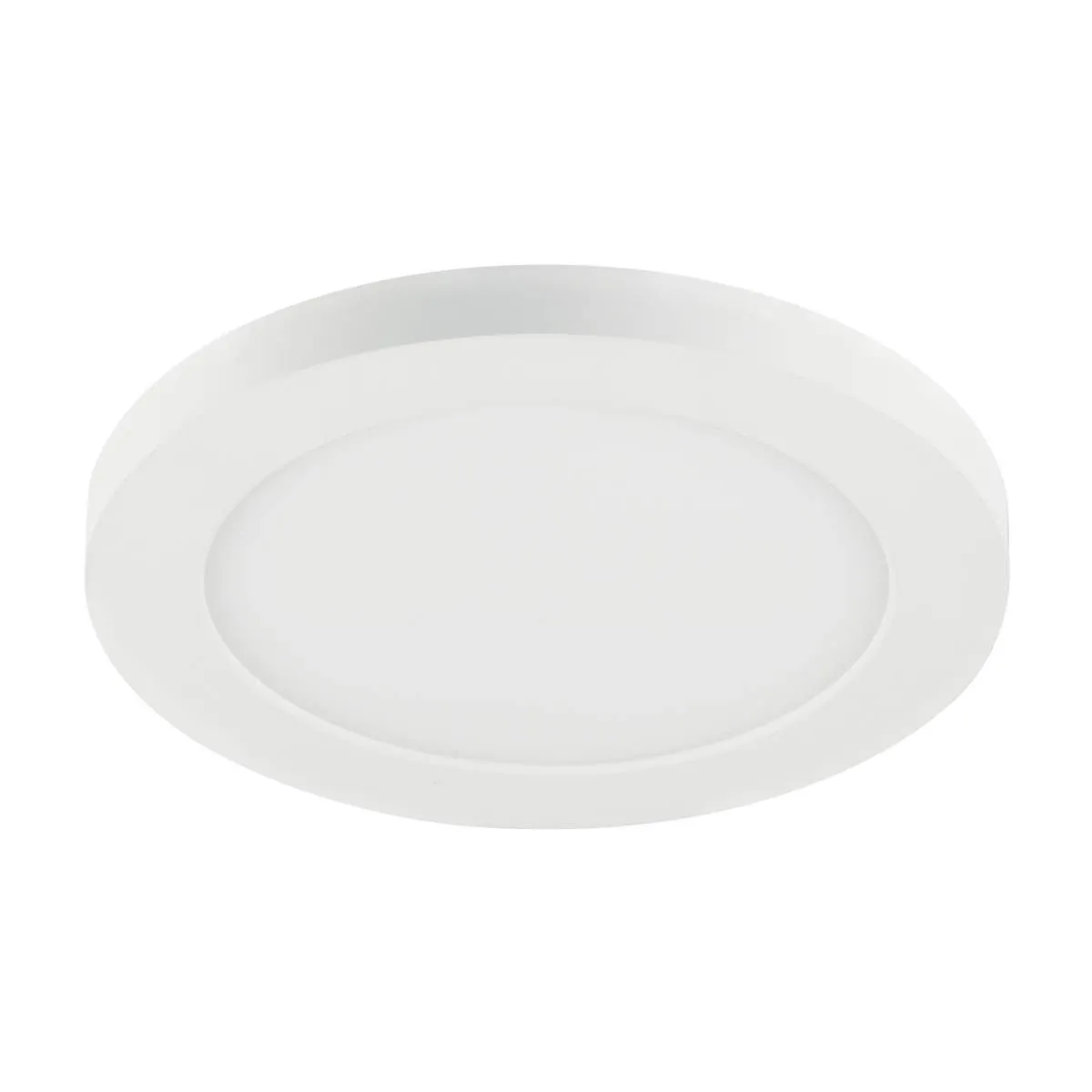

Trim Clip ON LED Panel 18 W 3000 K

₹1,031 – ₹1,470

Net Quantity :1 N

Key Features

Product Description : Installable as Surface & Recess with build in Driver
Housing Material & Profile : Powder Coated Polycarbonate Housing
Lumens Efficacy : 90 lm/W 6500 K
Diffuser : Premium Grade Opal Diffuser
UV/IR : No Harmful UV/IR Radiation

Share

SKU: N/A Categories: LED Panels, Lighting Tags: havelles, new Brand: Havelles

Features

Technical Specifications

Imported By

Havells India Ltd.
Country Of Origin

China
Suitable For

For residential & domestical application
Wattage (W)

18 W
Rated Input Voltage

220 V – 240 V AC
Rated Lumens

1460 lm
Warranty

2 Years
Applications

Ceiling Light
Installation

Recess & Surface
Net Contents

1 N Main Unit
Dimmable

Non Dimmable
Mounting Type

Recess & Surface
Shape Type

Round
Fixture shape

Round
Material

Polycarbonate
Body Colour

White
Diffuser Material

PC
Driver

Integrated Driver
Mounting Arrangement

Recess & Surface
Cut out Dimensions

Min 60 mm and adjustable mm
Dia

207 mm
Height

10.3 mm
Width

22 mm
Colour Rendering Index (CRI)

≥ 80
Colour Temperature

3000 K
Life

50000 hours
Lumen

1460 lm
Rated Luminous Flux (at 6500 K)

90 lm/W
Rated Correlated Colour Temperature

3000 K
Rated Efficacy

90 lm/W
Start Up Time

Instant
Frequency

50 Hz
Power Factor

≥ 0.90
THD

≤ 33
IP Rating

IP 20
UV / IR Radiation

No Harmful Radiations
Certifications

BIS
In Built Surge Protection

3 kV
Mercury Content

Zero Mercury Content
Protection

380 V High Voltage Protection
Usage

Suitable for Residences, Small Shops, and Schools & Colleges

Additional information

Wattage	12 W, 18 W
Colors Temp	3000K, 4000K, 6500K
